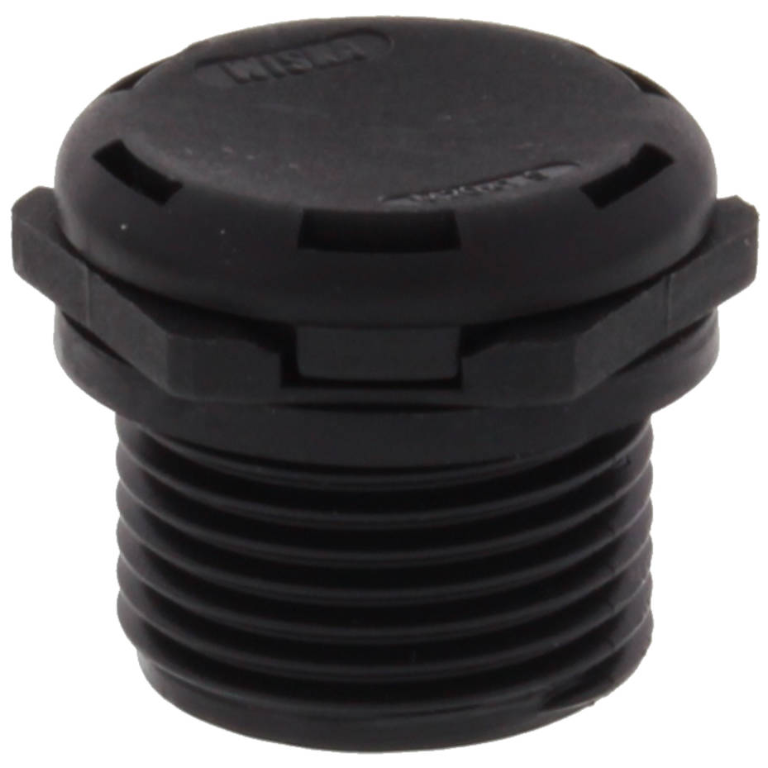

Wiska VentPLUG EVPS-L 20 Polyamide Pressure Compensation Unit – Black

£5.22

Wiska VentPLUG EVPS-L 20 Polyamide Pressure Compensation Unit – Black Being a pioneer in the development of breathable cable glands, WISKA today is an expert for breathable components avoiding condensation. The VentPLUG is used when a cable gland with an additional pressure equalisation unit is required to vent the enclosure. Pressure equalisation units from WISKA […]

Available on back-order

Add to quote
SKU: 10106596
Category:
Brands:

Description

Wiska VentPLUG EVPS-L 20 Polyamide Pressure Compensation Unit – Black

Being a pioneer in the development of breathable cable glands, WISKA today is an expert for breathable components avoiding condensation.

The VentPLUG is used when a cable gland with an additional pressure equalisation unit is required to vent the enclosure.

Pressure equalisation units from WISKA are now also available in thread sizes M 20 and M 40, in addition to M 12. Both feature a flat, space-saving design to enable flexible usage. Thanks to an improved membrane, the air flow rate of the new VentPLUG in the sizes M 20 and M 40 has more than doubled. The high air flow version even achieves a 2.5 times higher value.

  • Effective pressure equalisation
  • Protection against condensation
  • Protection against contaminants
  • High operational safety
  • Increased profitability
  • Ideal for roughest conditions
Material cable gland Polyamide
Material membrane ePTFE
Material sealing gasket EPDM
Airflow at 70mbar 110 LH
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 750 °C
Protection class IP68 / IP69
Thread type M

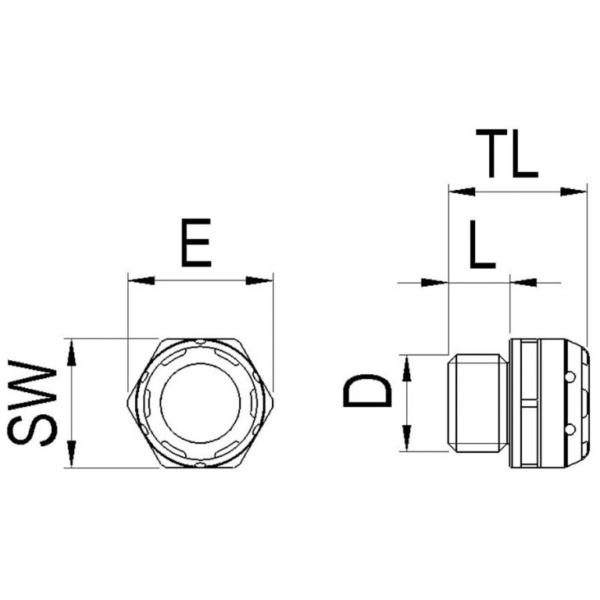

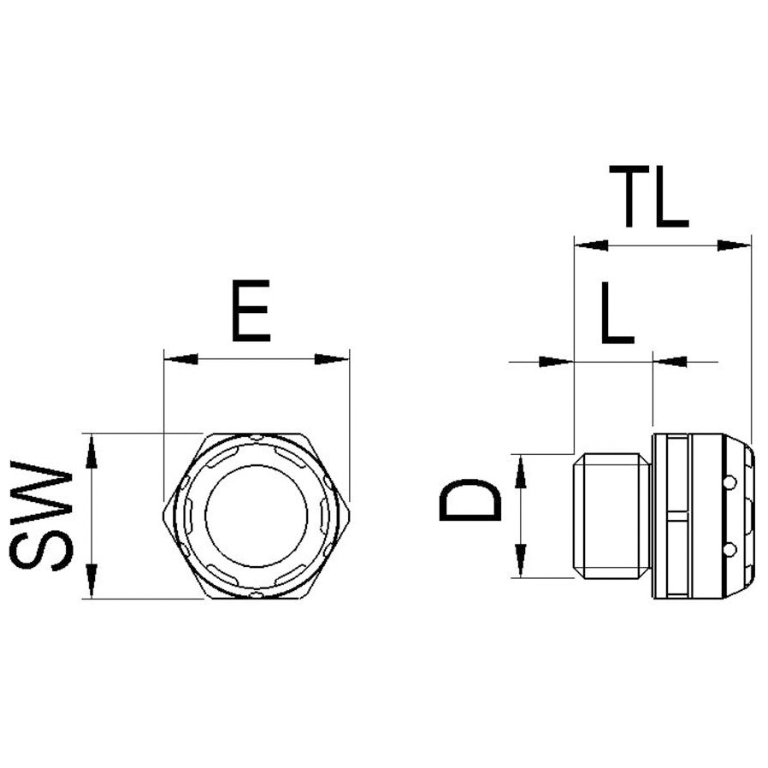

Ø Connection thread D 20
Lead 1.5
Length screw-in thread L 15 mm
Key width SW 24 mm
Collar diameter (E) 27 mm
Tightening torque 4 N/m
Total length TL 21.4 mm
Product Color RAL 9005

Additional information

Brand

Wiska
