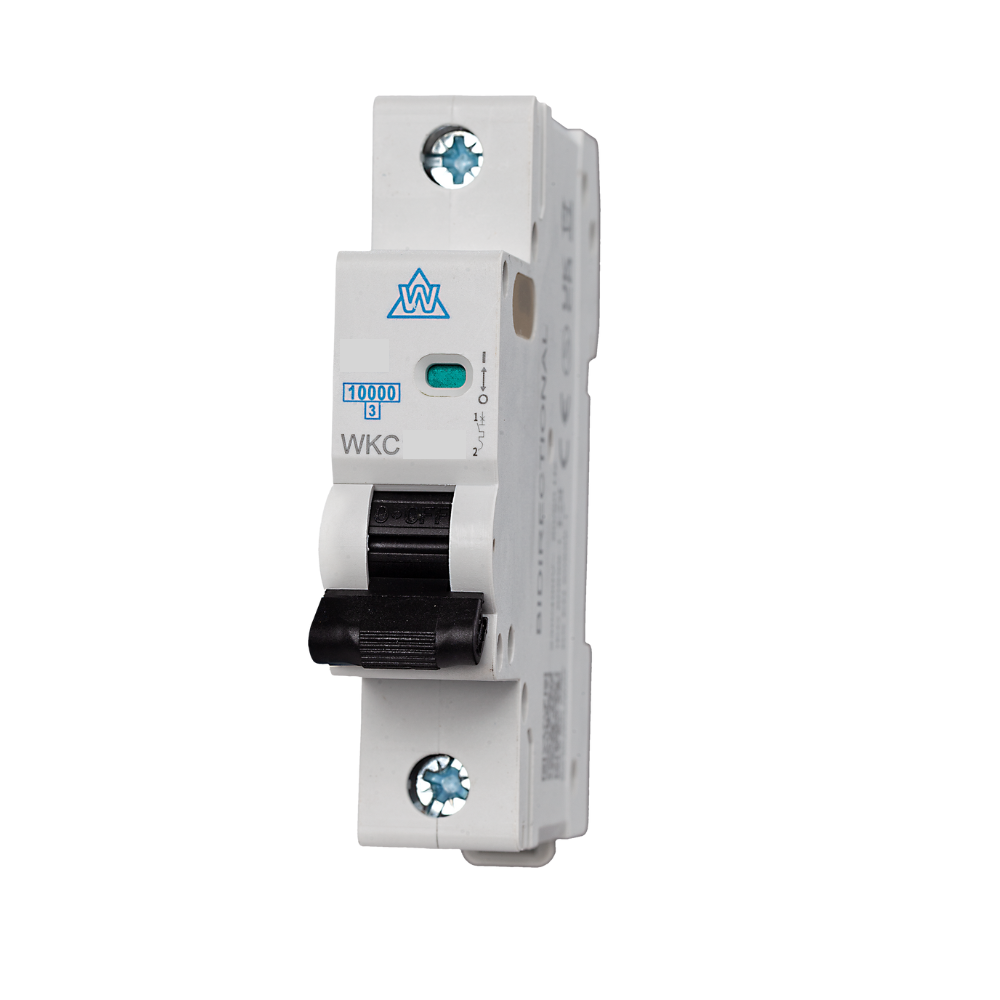

WCED WKC140D 10kA 1 Pole MCB Curve D 40A

Description

10kA 40A Curve D Miniature Circuit Breaker

Reliable Circuit Protection for WCED TP&N Three Phase Distribution Boards

WCED WKC140D – 10kA MCB

The WCED WKC140D is a high-performance MCB designed for precise overcurrent detection and short-circuit protection.

Built for use in WCED TP&N Three Phase Distribution Boards, it ensures stable and efficient circuit protection across commercial, industrial, and domestic applications.

Key Features

• Rated Current: 40A
• Curve Type: D Curve
• Breaking Capacity: 10kA
• Designed for WCED TP&N Three Phase Distribution Boards
• Compliant with IEC/EN 60898-1 standards
• Space-saving design for compact installations
• Manufactured under WCED – Whitecliffe Electrical Distribution for superior quality

Applications

• Commercial electrical distribution
• Industrial setups
• Domestic installations with a three-phase link

Technical Data

• Rated Current: 40A
• Rated Voltage Ue: 230/400V
• Insulation Voltage Ui: 500V
• Rated Frequency: 50/60Hz
• Rated Breaking Capacity: 10kA
• Thermo-Magnetic Release Characteristic: D
• Electrical Life: 4,000 Cycles
• Mechanical Life: 20,000 Cycles
• Protection Degree: IP20
• Ambient Temperature: -5℃ to +40℃
• Storage Temperature: -25℃ to +70℃
• Mounting: On DIN rail EN 60715 (35mm)
• Connection: From top and bottom

About the Brand

WCED – Whitecliffe Electrical Distribution is a trusted manufacturer of high-quality electrical protection devices. It is designed with precision and compliance to meet modern safety standards. WCED MCBs offer top-tier performance for electrical installations.
