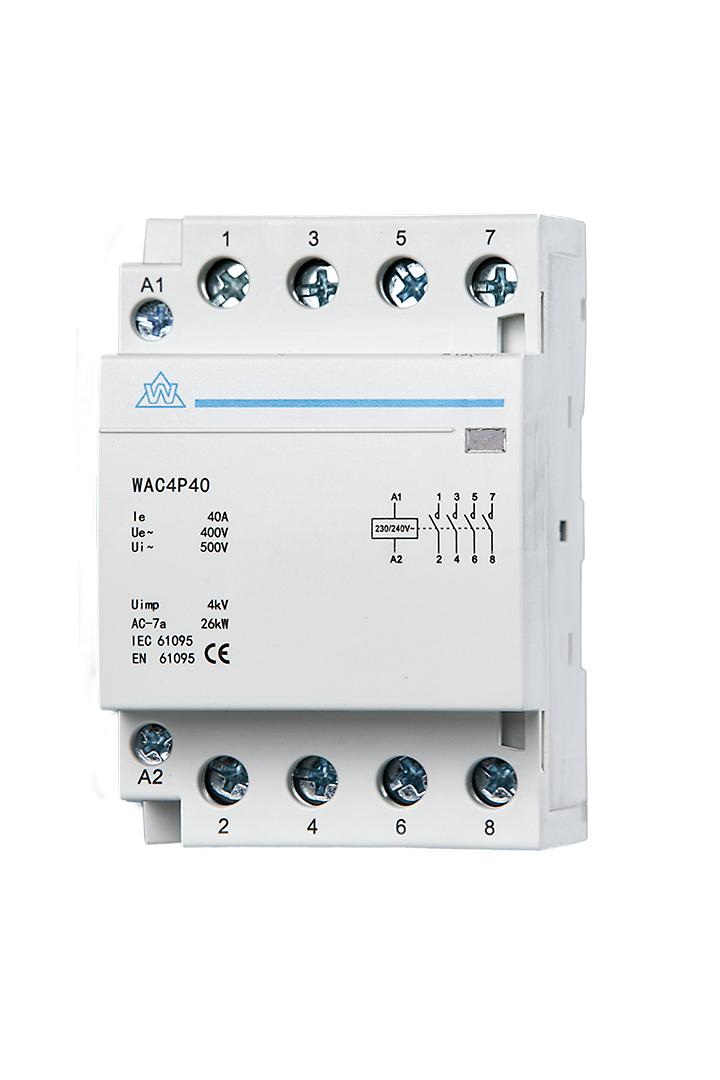

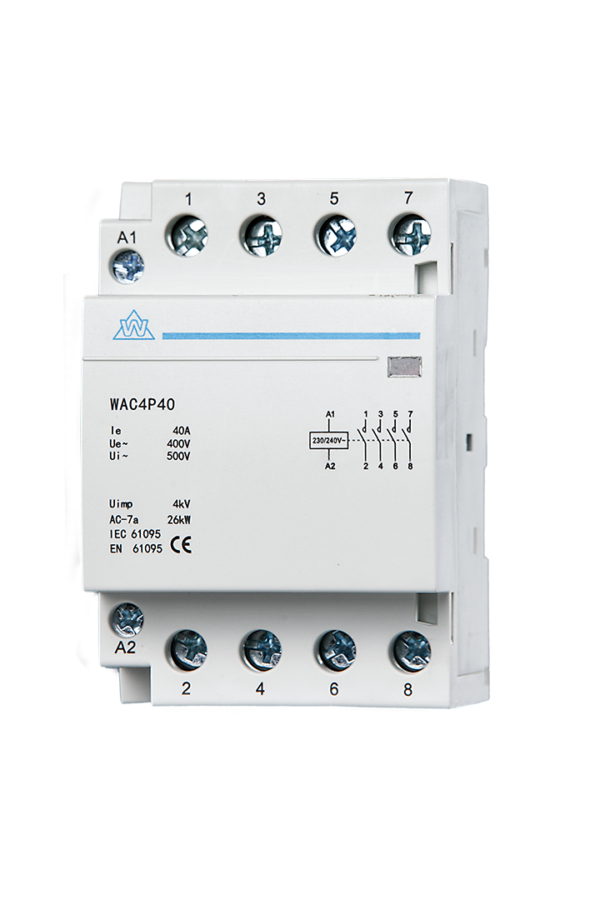

WCED 4 Pole 230/400V 32A NO Normally Open AC Modular Contactor

Description

4 Pole 230/400V 32A Normally Open AC Modular Contactor

The WCED 4 Pole 230/400V 32A Normally Open AC Modular Contactor is a reliable and compact solution for controlling electrical circuits in residential, commercial, and light industrial environments. Designed for precision and durability, it ensures efficient management of medium-capacity electrical loads such as lighting systems, HVAC equipment, and small machinery.

Key Features of 4 Pole 230/400V 32A Normally Open AC Modular Contactor

• 32A Current Rating: Suitable for managing medium electrical loads reliably.
• 4 Pole Configuration: Provides control for up to four circuits simultaneously.
• Normally Open (NO): Allows current flow only when activated, ensuring precise circuit management.
• Rated Voltage: Operates at 230/400V AC @ 50Hz, offering versatility across various applications.
• Compact Modular Design: Fits seamlessly into consumer units and enclosures, saving installation space.
• Silent Operation: Noise-free functionality, ideal for noise-sensitive environments.
• Durable Construction: Built from high-quality materials for consistent performance under demanding conditions.
• Standards Compliance: Certified to BS EN 61095 and BS EN 60947-4-1 for safe and efficient operation.

Technical Specifications

• Brand: WCED
• Poles: 4 Pole
• Current Rating: 32A
• Control Voltage: 230/400V AC
• Operation Type: Normally Open (NO)
• Degree of Protection: IP20, conforming to BS EN 60529
• Utilisation Categories: AC-7a (resistive loads) and AC-1 (slightly inductive loads)
• Ambient Temperature Range: -25 °C to +40 °C
• Mounting: 35 mm DIN rail compatible
• Recommended Torque: 2.0Nm for secure installation
• Compliance: Certified to BS EN 61095 and BS EN 60947-4-1

How It Works

The WCED 4 Pole 32A Modular Contactor uses an electromagnetic coil for managing electrical circuits:

1. Default State: In its normally open (NO) configuration, the contacts remain open, preventing current flow.
2. Activation: When the control voltage energises the coil, the magnetic field pulls the armature, closing the contacts to allow current flow.
3. Deactivation: Once the coil is de-energised, the contacts return to their default open state, halting current flow.

Applications

• Residential: Ideal for managing lighting systems, small heating setups, and automation devices.
• Commercial: Suitable for office lighting, HVAC systems, and small to medium electrical loads.
• Light Industrial: Effective for controlling small motors, pumps, and other machinery.

Why Choose This Contactor?

The WCED 4 Pole 230/400V 32A NO Modular Contactor is designed for professionals seeking precision, durability, and ease of use. Its compact design and compliance with international safety standards make it a trusted choice for reliable performance across a wide range of applications.
