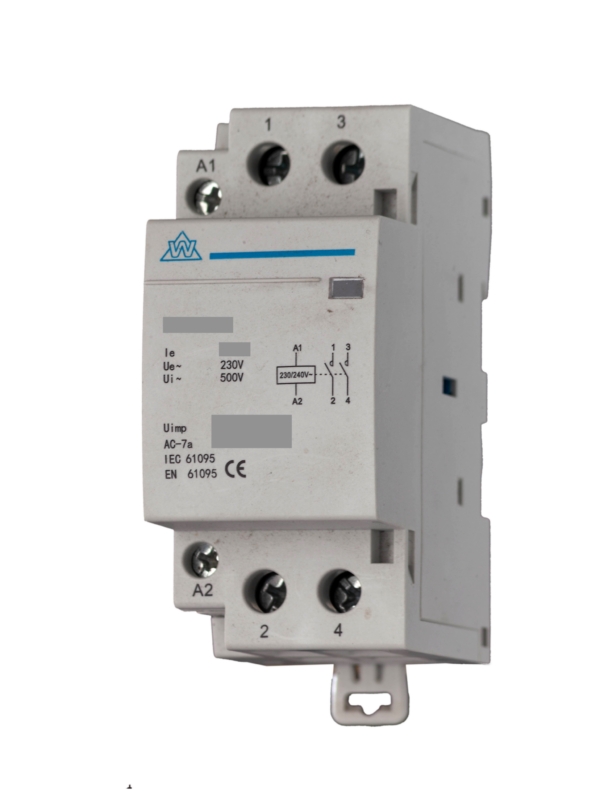

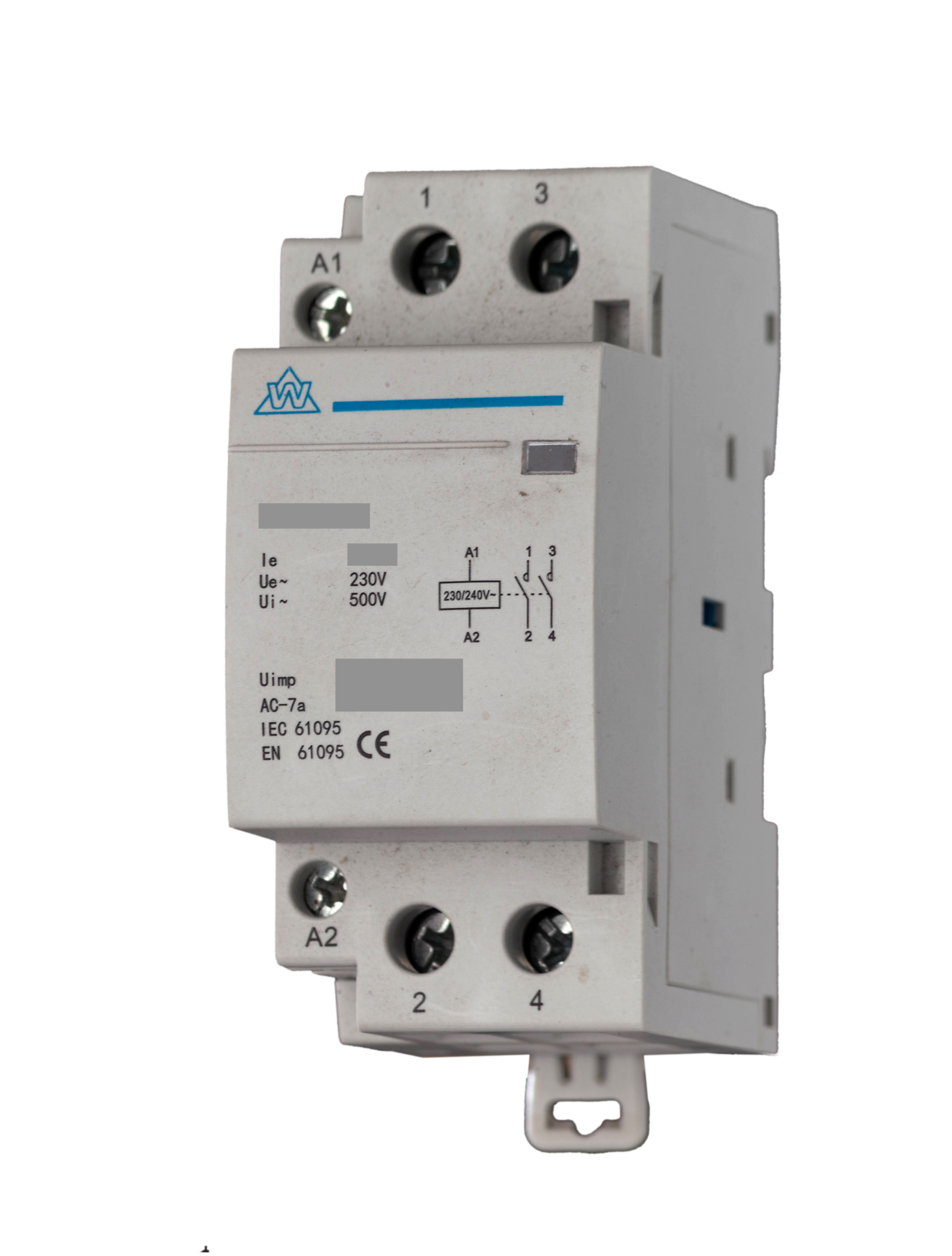

WCED 2 Pole 230V 125A NO Normally Open AC Modular Contactor

Description

2 Pole 230V 125A Normally Open AC Modular Contactor

The WCED 2 Pole 230V 125A Normally Open AC Modular Contactor is a high-performance solution for managing heavy electrical loads. Designed for durability and precision, this contactor is ideal for use in residential, commercial, and industrial installations. With a compact modular design and silent operation, it offers efficient control for demanding applications, such as HVAC systems, large lighting setups, and industrial machinery.

Key Features of 2 Pole 230V 125A Normally Open AC Modular Contactor

• 125A Current Rating: Handles high-capacity electrical loads with reliable performance.
• 2 Pole Configuration: Provides control for two independent circuits.
• Normally Open (NO): Ensures current flows only when activated, delivering precise circuit management.
• Rated Voltage: Operates at 230V AC @ 50Hz for versatile use in diverse setups.
• Compact Modular Design: Fits seamlessly into consumer units and enclosures, saving installation space.
• Silent Operation: Noise-free functionality, ideal for residential and noise-sensitive environments.
• Durable Construction: High-quality materials ensure long-term reliability under demanding conditions.
• Standards Compliance: Certified to BS EN 61095 and BS EN 60947-4-1 for safety and efficiency.

Technical Specifications

• Brand: WCED
• Poles: 2 Pole
• Current Rating: 125A
• Control Voltage: 230V AC
• Operation Type: Normally Open (NO)
• Degree of Protection: IP20, conforming to BS EN 60529
• Utilisation Categories: AC-7a (resistive loads) and AC-1 (slightly inductive loads)
• Ambient Temperature Range: -25 °C to +40 °C
• Mounting: 35 mm DIN rail compatible
• Recommended Torque: 2.0Nm for secure installation
• Compliance: Certified to BS EN 61095 and BS EN 60947-4-1

How It Works

The WCED 2 Pole 125A Modular Contactor operates using an electromagnetic coil for reliable circuit control:

1. Default State: In the normally open (NO) configuration, the contacts remain open, preventing current flow.
2. Activation: When the control voltage energises the coil, the magnetic field pulls the armature, closing the contacts to allow current flow.
3. Deactivation: Once the coil is de-energised, the contacts return to their open state, halting the current flow.

Applications

• Residential: Suitable for controlling high-capacity lighting systems and heating circuits.
• Commercial: Ideal for HVAC systems, retail lighting setups, and electrical equipment control.
• Industrial: Effective for managing motors, pumps, and heavy-duty machinery.

Why Choose This Contactor?

The WCED 2 Pole 230V 125A NO Modular Contactor combines durability, precision, and silent operation, making it a trusted choice for professionals. Its robust construction and compliance with international safety standards ensure reliable performance across a wide range of high-demand applications.
