Description
WINSTA® MIDI Plug with Strain Relief Housing 5-Pole
Wago 770-1115/022-000
The Wago 770-1115/022-000 WINSTA® MIDI Plug is part of the WINSTA® pluggable connection system, designed to simplify and accelerate electrical installations. With its 5-pole configuration, this plug is perfect for DALI (Digital Addressable Lighting Interface) applications, supporting a high current capacity of 25A.
Its compact design and strain relief housing offer additional cable protection, while the WINSTA® technology ensures foolproof installation, protecting against mismating in various scenarios.

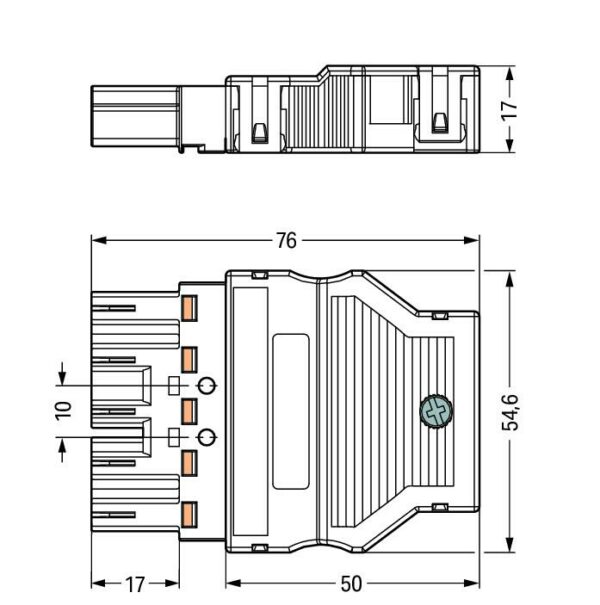

Dimensions:
- Pin Spacing: 10 mm / 0.395 inches
- Width: 54.6 mm / 2.15 inches
- Height: 17 mm / 0.669 inches
- Depth: 75.9 mm / 2.988 inches
Key Features:
- High Current Capacity: Rated for 25A, this plug supports 5-core DALI cables, making it ideal for lighting control systems and other applications requiring high current loads.
- Mismating Protection: The WINSTA® system guarantees 100% protection against mismating by preventing:
- Plugging with different pole numbers
- Plugging when rotated 180°
- Plugging in a laterally staggered position
- Plugging only one pole
- Push-in CAGE CLAMP® Technology: Allows solid conductors to be quickly and securely pushed into the unit, reducing installation time and effort.
- Versatile Applications: Suitable for various settings, including building installations, industrial applications, marine, and railway systems.
- Strain Relief Housing: Ensures that cables remain securely connected and protected from strain, increasing reliability and longevity.
Benefits:
- Fast and Error-Free Installation: With WINSTA® technology, installation is simplified, ensuring that connections are always safe, secure, and protected against mismating.
- Compact and Durable Design: The plug’s small size allows for easy installation in tight spaces, while its robust construction ensures long-term reliability.
- Customizable Options: Components can be printed and color-coded to meet specific installation requirements, making the system adaptable for custom applications.
Applications:
- DALI Lighting Control Systems: Perfect for 5-core DALI cables in lighting systems, offering reliable connections and high current capacity.
- Industrial and Marine Systems: Suitable for industrial applications as well as marine and railway environments where secure, pluggable connections are essential.
- Building Installations: The WINSTA® system meets the strict demands of modern building installations, ensuring fast, safe, and maintenance-free connections.
The Wago 770-1115/022-000 WINSTA® MIDI Plug with strain relief housing is the perfect choice for high-current applications, offering unmatched reliability, ease of installation, and full protection against mismating with WINSTA® technology.
