Saxby 112551 – ShieldPRO 4CCT 5W/7W Fire Rate LED Downlight

Description

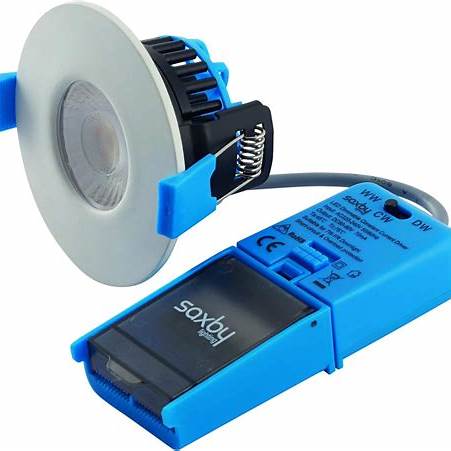

Saxby ShieldPRO 4CCT Dual Wattage Downlight – 112551 White

Versatile Lighting for Bathrooms and Interiors – Saxby 112551 IP65 Fire Rated Dimmable Downlight

The Saxby 112551 IP65 Fire Rated Dimmable Downlight is a powerful and flexible LED fitting designed for modern homes and commercial interiors. This model includes selectable wattage (5W or 7W) and four colour temperature options, allowing it to adapt to a wide variety of spaces.

With its IP65 front rating and 30/60/90-minute fire resistance, it is ideal for use in bathrooms, kitchens, and fire-rated ceilings. Easy to install and double insulated, it delivers high-performance lighting with minimal fuss.

Key Features – Saxby 109804 IP65 Fire Rated Dimmable Downlight

• Fire-rated for 30, 60, and 90 minutes – suitable for ceiling installations
• IP65-rated front – safe for bathrooms and damp areas
• Dimmable – supports trailing edge dimmers
• Dual wattage: 5W or 7W selectable via built-in switch
• 4CCT colour selection: 2700K, 3000K, 4000K, or 6000K

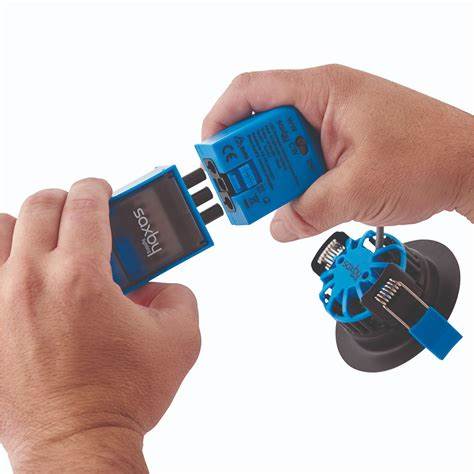

• Quick-fit terminal block with loop-in/loop-out wiring
• Double insulated – no earth connection required
• Suitable for installation under insulation (up to 270mm)
• Bathroom Zones: Safe for Zone 2 and outside zones (Zone 1 with 30mA RCD)

Technical Overview – Saxby 109804 IP65 Fire Rated Dimmable Downlight

• Model Code: 112551
• Voltage: 220–240V AC, 50Hz
• Selectable Wattage: 5W or 7W
• Selectable CCT: 2700K / 3000K / 4000K / 6000K
• Beam Angle: 60°
• Cut-out Diameter: Ø68mm
• Minimum Cavity Depth: 65mm
• Ambient Operating Temperature: -20°C to +40°C
• Energy Efficiency Class: E
• Light Source: Non-replaceable SMD LED
• Driver: Integrated, non-replaceable
• Material: Steel, Polycarbonate
• Finish: Matt White

What’s Included?

• Saxby 109804 IP65 Fire Rated Dimmable Downlight x 1
• Pre-fitted white bezel x 1
• Quick-fit terminal block x 1
• Installation manual x 1

Why Choose This Product?

This downlight offers true versatility for installers and homeowners alike. The dual wattage and 4CCT options allow you to tailor brightness and tone to any environment. Its anti-glare recessed design ensures visual comfort, while tool-free wiring saves time on-site. With its fire and moisture ratings, the Saxby 112551 IP65 Fire Rated Dimmable Downlight provides a complete solution for safe and stylish interior lighting.

Guarantee & Compliance

Supplied with a 3-year manufacturer’s guarantee. Fully compliant with UKCA, CE, and Building Regulations Part B. Suitable for I-joist and steel web joist ceilings.

Summary – Saxby 112551 IP65 Fire Rated Dimmable Downlight

A bathroom-safe, dimmable LED downlight with selectable wattage and 4CCT output. Designed for fast installation and reliable performance in homes and commercial spaces.
