⏱️ Delay On Single Function DIN Rail Timer for Precise Timing
Niglon DOST

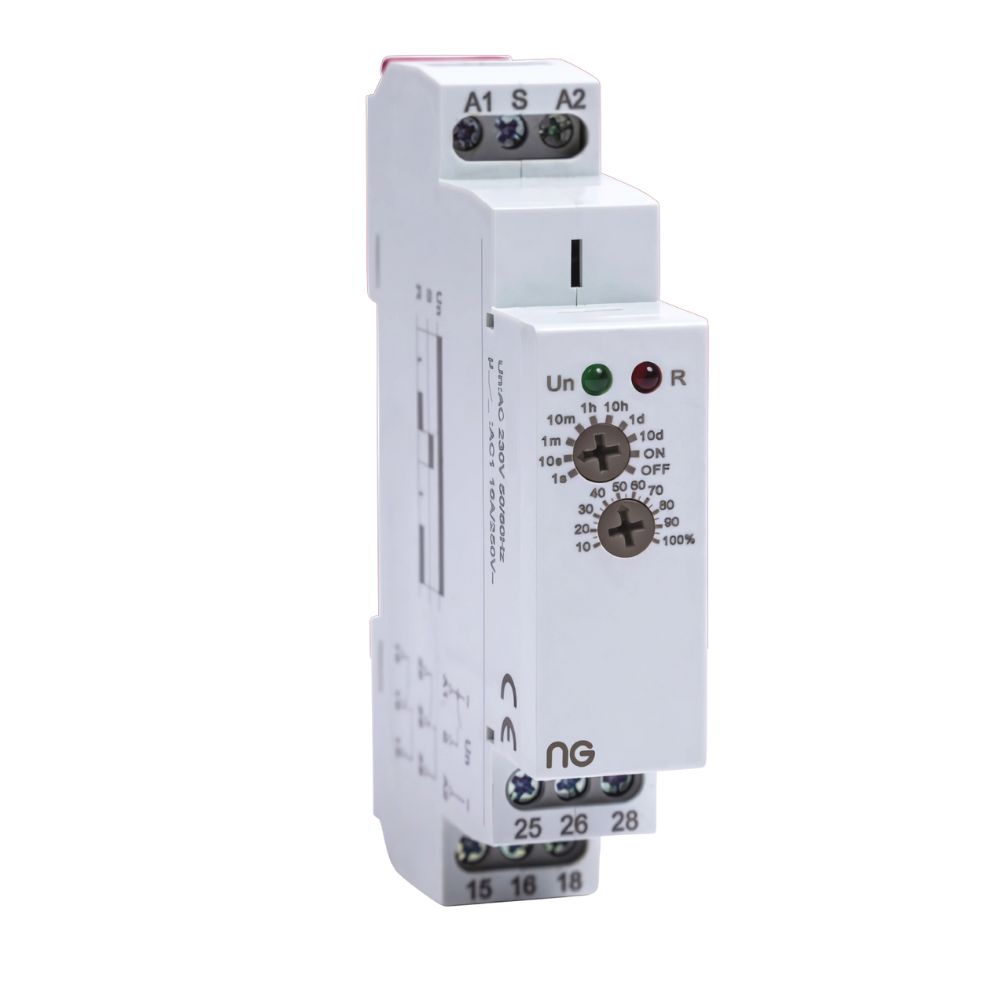

The Niglon DOST Delay On Single Function DIN Rail Timer offers simple and reliable ON-delay timing for automation systems. It is ideal for use in lighting, motors, pumps, or fan control circuits where a delay before activation is required.
This compact relay supports a wide multi-voltage input (12–240V AC/DC), includes 8 selectable time ranges, and features LED indicators for power and timing status. It’s easy to mount on a 17.5 mm DIN rail and provides a durable 16A changeover output contact.
🔧 Key Features – ON-Delay Timer Relay
- Function: Delay ON (single function – Mode A)
- Time Ranges: 0.1s to 10 days (8 ranges total)
- Voltage Range: 12–240V AC/DC
- Contact Type: 1 × CO (Changeover), 16A (AgNi)
- LED Indicators: Green (coil power), Red (timer running)
- Reset Time: 200 ms
- Repeat Accuracy: ±0.2%
- Mechanical Life: 20 million operations
- Electrical Life: 200,000 operations
- Mounting: DIN rail (17.5 mm width)
- Terminals: Screw clamp (up to 2.5 mm²)
- Standards: EN61812-1, EN60947-5-1
📏 Dimensions
- Width: 17.5 mm
- Height: 76 mm
- Depth: 61 mm
- Weight: 62 g
🏠 Best For
- Timed activation of lighting and fans
- Pump control with delayed start
- Motor protection circuits
- Automation systems needing reliable ON-delay timing
📝 Summary – Single Function DIN Rail Timer
The Niglon DOST delivers dependable ON-delay control across a wide range of voltages and time settings. With LED status lights and a compact design, it fits easily into any DIN rail setup for smart, space-saving control.
