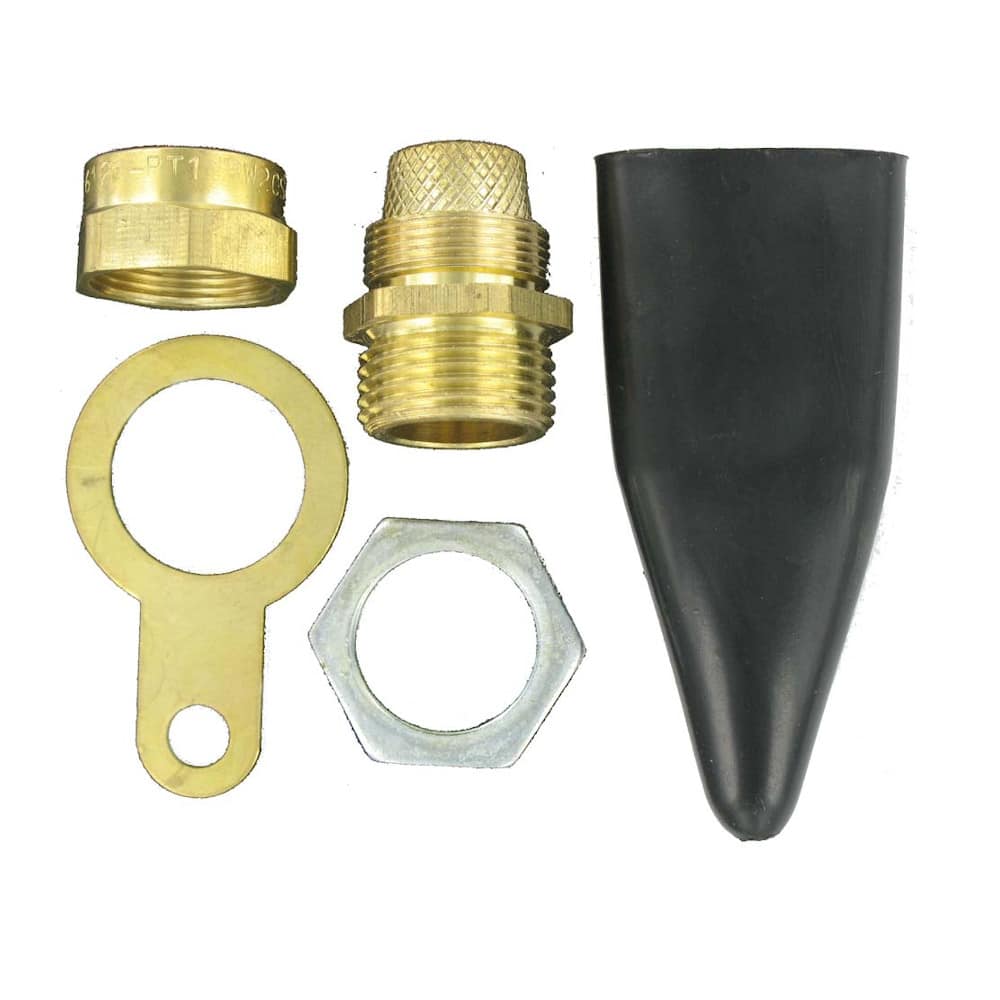

LSF External SWA Cable Gland 20 – Pack of 2
£5.50
The LSF External SWA Cable Gland 20 – Pack of 2 is ideal for SWA cables, including 2 Core (6-10mm²), 3 Core (6-10mm²), 4 Core (6mm²), and 5 Core (6mm²).
In stock (can be backordered)
Description
CW20LSF LSF External SWA Cable Gland 20
The LSF External SWA Cable Gland 20 – Pack of 2 is a high-quality brass gland designed specifically for Steel Wire Armoured (SWA) cables (H694-XL). These Low Smoke and Fume (LSF) glands ensure secure clamping, electrical continuity, and mechanical retention. Built for outdoor use, they provide a reliable waterproof seal, making them ideal for professional and demanding installations.
Recommended Applications
This gland is suitable for the following SWA cable configurations:
- 2 Core SWA: 6-10mm²
- 3 Core SWA: 6-10mm²
- 4 Core SWA: 6mm²
- 5 Core SWA: 6mm²
Key Features of CW20LSF LSF External SWA Cable Gland 20
- LSF Brass Construction: Manufactured with durable LSF brass to provide enhanced safety and long-lasting performance.
- Secure Clamping: Ensures effective clamping of armour wires for reliable electrical continuity and mechanical retention.
- Waterproof Design: Designed to withstand outdoor environments, offering a dependable seal against moisture and harsh conditions.
- Versatile Use: Fully compatible with Steel Wire Armoured cables (H694-XL), suitable for a variety of cable sizes.
Size Guide for Cable Glands
Cable Gland Selection Chart
| Conductor Size (sqmm) | 2 Cores | 3 Cores | 4 Cores | 5 Cores |
|---|---|---|---|---|
| 1.5 | 20s/16 | 20s/16 | 20s | 20s |
| 2.5 | 20s | 20s | 20s | 20s |
| 4 | 20s | 20 | 20 | 20 |
| 6 | 20 | 20 | 20 | 20 |
| 10 | 20 | 20 | 20 | 25 |
| 16 | 20 | 20 | 25 | 25 |
| 25 | 20 | 25 | 32 | 32 |
| 35 | 25 | 32 | 32 | 32 |
| 50 | 32 | 32 | 40 | 40 |
| 70 | 32 | 40 | 40 | 40 |
| 95 | 40 | 40 | 50 | 50 |
Important Note
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Conclusion
The LSF External SWA Cable Gland 20 – Pack of 2 is a versatile and durable solution for SWA cable installations in outdoor environments. With its robust brass construction, waterproof sealing, and compatibility with a range of cable sizes, this gland ensures safe and efficient performance for residential, commercial, and industrial projects.
Additional information
| Brand | CTC, Deligo, Cobra |
|---|---|
| IP Rating | IP65 |
| Product | SWA Cable Gland |
| Features | LSF Shroud |
| Size | 20 |
| Range | Outdoor |
