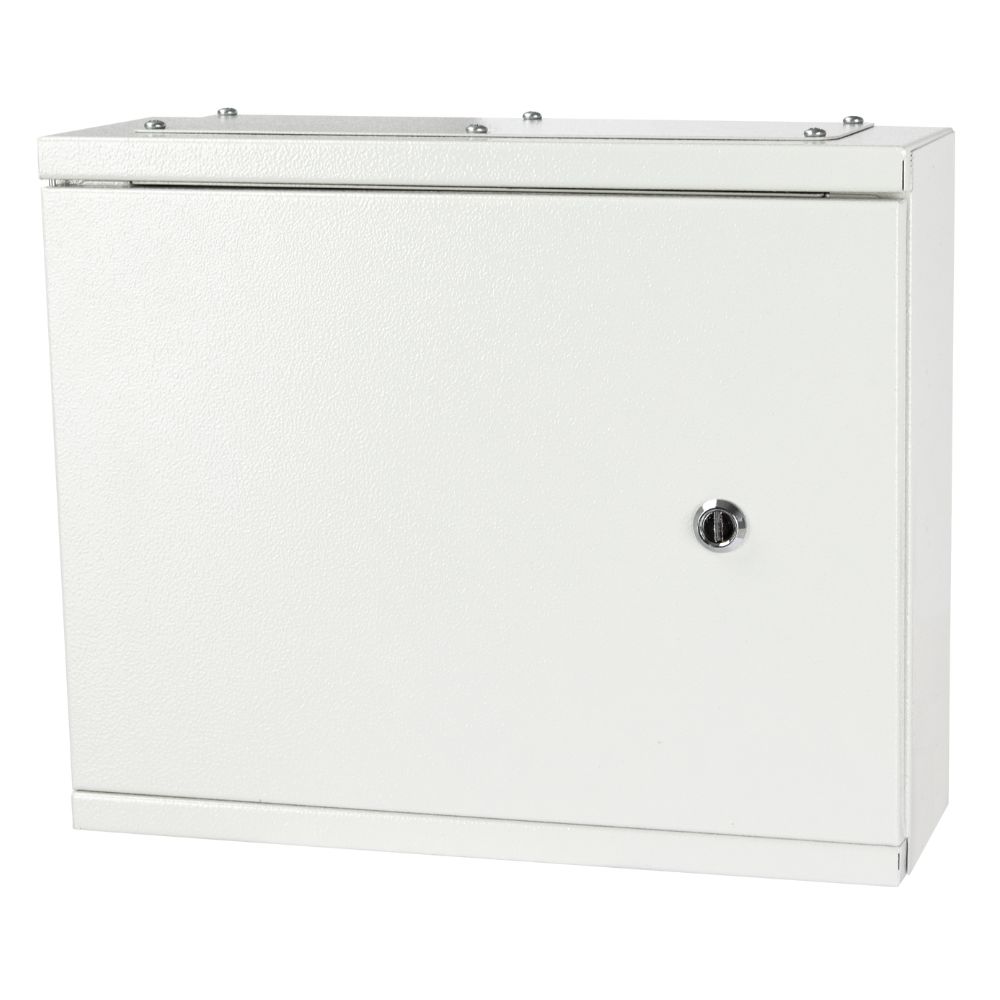

Live Electrical TPNH02-100 2 Way Horizontal TP&N Distribution Board – 100A 4 Pole Main Switch

Description

High-Quality Horizontal TP&N Distribution Board for 3-Phase Systems

100A TP&N Distribution Board with 2-Way Usable Ways, Removable Blanking Plate & Faster Installation

The TPNH02-100 Horizontal TP&N Distribution Board is a reliable and versatile solution for 3-phase electrical installations. Equipped with a 100A 4-pole switch disconnector incomer, this board offers 2-way three-phase usable ways, making it ideal for managing electrical circuits in commercial and industrial environments. Fully compliant with BS EN 61439-1&3 standards, it is compatible with 3-phase MCBs and RCBOs.

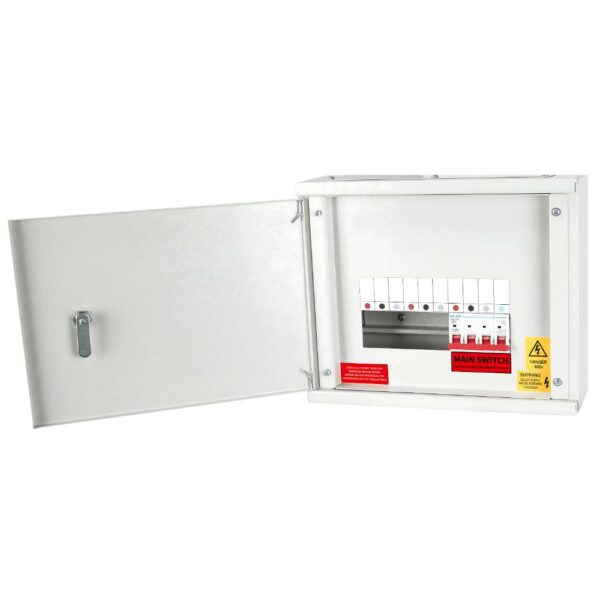

The pre-fitted 100A main switch features double twin screw terminals, ensuring a secure and reliable connection for meter tails. The board also features a removable blanking plate for easier cable entry, keyhole fixing holes for fast installation, and earth & neutral terminals placed next to the outgoing MCBs for convenience.

📦 What’s Included

• 1 × TPNH02-100 Horizontal TP&N Distribution Board
• 1 × 100A TP&N incomer –  features double twin screw terminals, ensuring a secure and reliable connection for meter tails.
  Removable blanking plate for cable entry
• Keyhole fixing holes for easy mounting
• Installation instructions

🔑 Key Features of TPNH02-100 Horizontal TP&N Distribution Board

• 2-way three-phase usable ways
• 100A 4-pole switch disconnector incomer – features double twin screw terminals
• Complies with BS EN 61439-1&3 standards
• Removable blanking plate for easy cable entry
• Keyhole fixing holes for faster installation

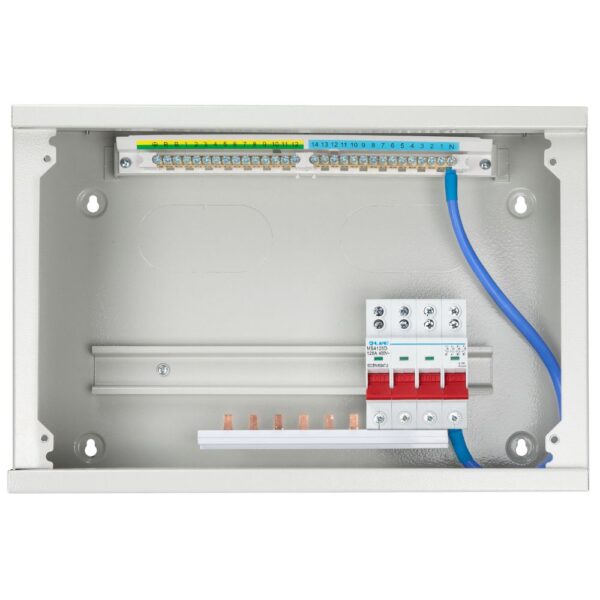

• Earth & neutral terminals adjacent to outgoing MCBs for convenience
• Epoxy powder paint finish (RAL7035) for durability
• Designed for use with 3-phase MCBs and RCBOs
• Compact dimensions for space-saving installation

💡 Why Choose This TP&N Distribution Board?

• Ideal for 3-phase electrical installations
• Provides 2-way three-phase usable ways, perfect for small-scale electrical circuits
• Built to meet the latest industry standards for safety and compliance
• Easy installation with features like keyhole fixings and removable blanking plate
• Durable, high-quality construction ensures long-term reliability

📊 Technical Highlights of the TPNH02-100 Horizontal TP&N Distribution Board

• Model: TPNH02-100
• Incomer: 100A 4-pole switch disconnector
• Usable Ways: 2-way three-phase usable ways
• Standards: Compliant with BS EN 61439-1&3
• Current Rating: 100A max incomer
• Compatible with: 3-phase MCBs and RCBOs
• Finish: Epoxy powder paint (RAL7035)
• Earth & Neutral Terminals: Positioned next to outgoing MCBs
• Dimensions: Width (W): 325mm, Height (H): 265mm, Depth (D): 103mm

🏷️ About the Brand – Live Electrical

• Renowned for high-quality distribution boards and electrical components
• Trusted in commercial and industrial electrical installations
• Committed to safety, compliance, and durable performance

📌 Summary of TPNH02-100 Horizontal TP&N Distribution Board

The TPNH02-100 is a compact TP&N distribution board designed for reliable three-phase circuit management. Featuring 2-way three-phase usable ways, a 100A 4-pole switch disconnector incomer, and compliance with BS EN 61439-1&3, it provides an efficient and space-saving solution for small commercial or industrial electrical installations.

This compact three phase distribution board also includes installation-friendly features such as a removable blanking plate, keyhole fixings, and adjacent earth & neutral terminals for fast, professional installs.

If you’re looking for alternative configurations, we also offer the following models in the same compact range. These boards include a 100A 4 Pole Main Switch and are available with or without a Type 2 Surge Protective Device (SPD):

• Live Electrical TPNH03-100 3 Way Horizontal TP&N Distribution Board – 100A 4 Pole Main Switch
• Live Electrical TPNH03-100S 2 Way Horizontal TP&N Distribution Board – 100A 4 Pole Main Switch + Type 2 Surge Protective Device

These variants offer the same low-profile, space-saving design, making them ideal for commercial and three-phase installations in tight spaces.
