Description

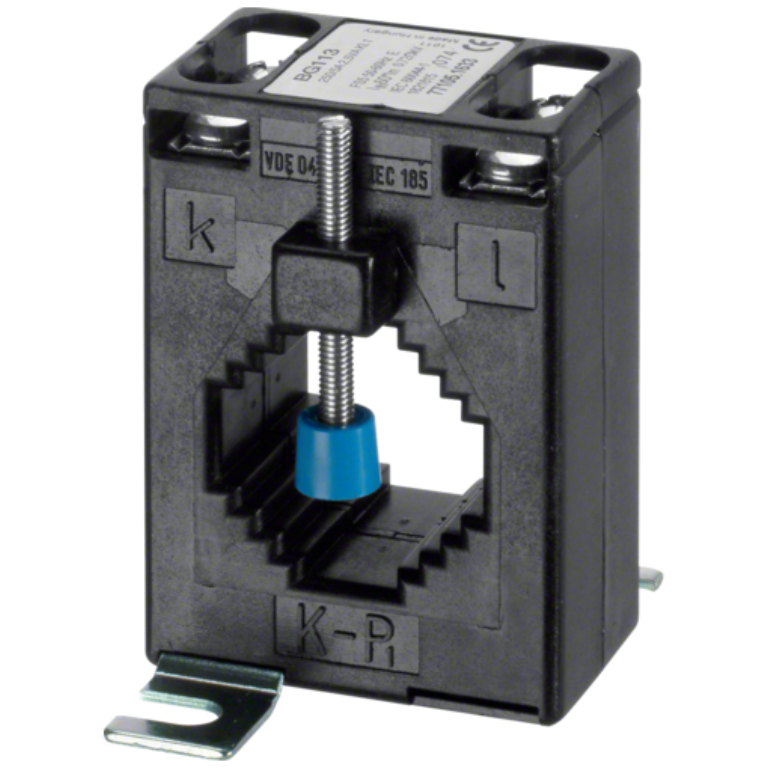

Bar/Cable-Through Current Transformer BG 113 250/5A 2.5VA Class 1
Hager SRA02505
The Hager SRA02505 is a high-performance bar/cable-through current transformer engineered for precise current measurement in energy monitoring applications. With a 250/5A ratio and 2.5VA Class 1 accuracy, this device offers reliable and accurate performance for industrial, commercial, and utility systems. Its compact design and screw-type connections make it an excellent choice for professional installations.
Key Features of Hager SRA02505 Bar/Cable-Through Current Transformer
- 250/5A Current Ratio: Provides accurate current measurement with Class 1 precision.
- 2.5VA Power Rating: Designed to support precise energy monitoring applications.
- Bar/Cable-Through Design: Simplifies integration with existing electrical setups.
- Wide Frequency Range: Operates efficiently at 50/60Hz.
- Compact Size: Space-saving design with a height of 70mm and width of 49.5mm.
- Secure Connections: Screw terminals compatible with flexible and rigid cables for reliable wiring.
- Durable Construction: Operates in extreme temperatures from -40°C to 40°C.
Technical Specifications
Electrical Characteristics:
- Frequency: 50/60Hz
- Rated Insulation Voltage: 3kV
- Power Loss Under IN: 2.6W
Physical Characteristics:
- Depth: 30mm
- Height: 70mm
- Width: 49.5mm
- Height of Opening: 20mm
Connection Details:
- Flexible Conductor Cross-Section: 1.5–6mm²
- Rigid Cable Cross-Section: 1.5–6mm²
- Connection Type: Screw
Compliance and Standards:
- European Directive WEEE: Concerned
- IP Protection Index: IP10
Environmental Conditions:
- Operating Temperature: -40°C to 40°C
Applications
The Hager SRA02505 is ideal for:
- Industrial: Monitor energy usage in heavy machinery and production setups.
- Commercial: Track power consumption in office buildings, retail outlets, and data centers.
- Utilities: Provide precise current measurements for public infrastructure energy systems.
Why Choose the Hager SRA02505?
The Hager SRA02505 delivers precision, durability, and compact design, making it an excellent solution for energy monitoring systems. Its bar/cable-through design allows for quick installation, while its compliance with Class 1 standards ensures dependable performance in demanding environments.
